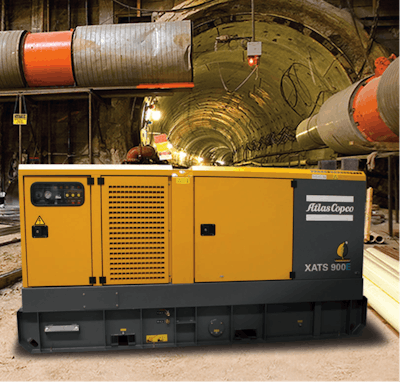

The compressor features a high-efficiency 160-kilowatt WEG 22 motor. Despite the industry-wide focus on Tier 4 Final regulations, the XATS 900E’s electric motor exempts it from emission regulations, so it’s usable in any state, province or territory. In addition, the electric motor gives contractors a cost-effective alternative to traditional diesel-fueled air compressors because electricity prices are less volatile than fuel costs. The XATS 900E operates at a very quiet 73 decibels — about the same as a vacuum cleaner — which allows contractors to work in noise-sensitive areas, such as near hospitals or schools.
- Easy-to-use digital interface, main breaker, sequence phase relay and external emergency stop button for simple controlling and monitoring of the unit.
- Set the air flow to one of four preset flow and pressure ratings, which range from 879 to 906 cubic feet per minute at 100 to 150 psi discharge pressure.
- The compressor features a heavy-duty, galvaneel steel frame and enclosure, and with a footprint of just 44 square feet.
- Small, durable structure allows users to stack two high and fit as many as nine units on a 53-foot trailer.
- Operators can use it on nearly any type of surface because its frame does not require a concrete base.
- An optional dual-axle trailer for towing is available.
- Large doors provide full access to all maintenance and service points, all of which are on one side of the unit, to minimize servicing time.
- Heavy-duty air filter that features a safety cartridge, which protects it from the elements to ensure reliability in any environment.
- 100 percent spillage-free frame will contain all of the compressor’s fluids — diesel, both engine & compressor oils and engine coolant.
