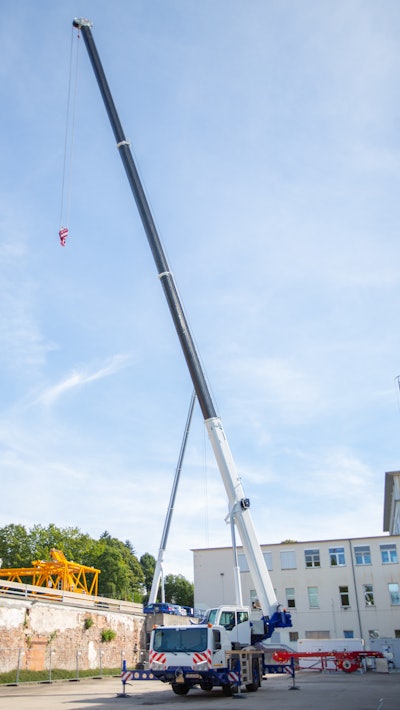

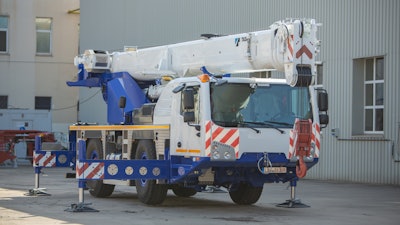

The AC 2.040-1 compact, two-axle crane has a fully hydraulic boom with a fully extended boom length of 115.5 ft. and the ability to telescope under load. An available extension provides another 29.5 ft. that can be offset by up to 40°. The unit is capable of heavy lifts involving loads of up to 70,327 lbs. without requiring any additional sheaves. Its IC 1 Plus control system includes automatic counterweight detection, a capacity radar and a work area display. The system determines the crane’s lifting capacity for every boom position as a function of the superstructure’s slewing angle, making use of the maximum available lifting capacity with any outrigger configuration.
- Flex Base system makes it possible to extend the outriggers to any point within their range
- Surround View camera system shows both the maximum possible extension lengths for the outriggers and the counterweight tailswing radius
- IC 1 Remote telematics solution shows location and all operating information on the monitor
- 310-hp Cummins engine
- Steerable rear axle with automatic programs for extremely tight radii and crab steering
- Can carry up to 2,425 lbs. of counterweight while staying under an axle load limit of 12 tonnes
- Runner can be carried directly on the crane to the left of the main boom
- Removable rear storage box available with or without a wood rack
