The compact DR 310 Drill Module is designed for shallow wells where low pressure, low flow is required. This module provides 310 cfm and 200 psi of air power (8.4 m3/min and 13.8 bar). The DR 310 can be hydraulically or engine driven.

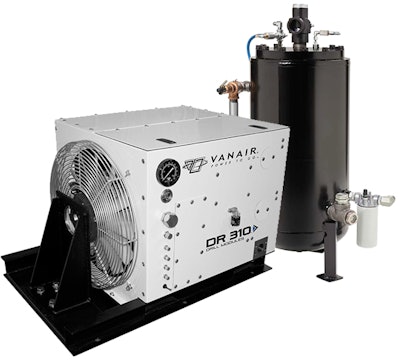

Designed for maintenance when mounted on the vehicle, the machine is equipped with a rotary screw air compressor and a vertical discharge tank. Accessible instruments include temperature and pressure gauges, as well as an oil level sight glass. The DR 310 features high-pressure shutdown, air pressure relief safety valve, automatic blowdown on shutdown, oil fill plug safety relief and minimum pressure valve. A powder coated, galvanneal sheet metal enclosure protects the drill module from debris, moisture and corrosion in rugged outdoor environments.
DR 310 Drill Module Specifications
| Rated Capacity | 310 cfm (8.4 m3/min) |
| Pressure | Up to 200 psi (13.8 Bar) |
| RPM Input | 2,500 rpm |
| Input BHP Required | Up to 108-hp (81 kW) |
| Compressor Module Weight | 900 lbs. |
| Separator Tank Weight | 200 lbs. |
| Fan Drive Method | Compressor Input Shaft |
