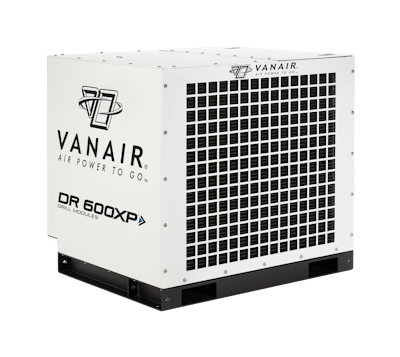

The Vanair DR 600XP drill module provides a boost in pressure for demanding jobs, such as directional, down-the-hole, percussive hammer and rock drilling. During use, the drill module generates 600 cfm and 250 psi capable of supporting a 4-in. hammer drill.
This machine comes with a vertical discharge tank, featuring a pressure relief valve, oil scavenge sight glass and coalescer restriction indicator. Dual two-stage air filters with dust evacuators promote clean air. Accessible instruments include temperature and pressure gauges.
The DR 600XP has mounting provisions at the bottom of the frame for permanent installations, as well as integral forklift tubes for transportation. A galvanneal sheet metal enclosure with a powder coated finish protects the drill module, allowing the machine to withstand rugged conditions.
DR 600XP Specifications
| Rated Capacity | 600 cfm (17.2 m3/min) |
| Pressure | 250 psi (17.3 bar) |
| RPM Input | 2,100 rpm |
| Input BHP Required | Up to 230 hp (172 kW) |
| Tank Discharge (SAE) | 2 in. NPT |
| Compressor Module Weight | 1,680 lbs. |
| Separator Tank Weight | 335 lbs. |
| Hydraulic Flow Required | 13.5 gpm |
| Hydraulic Pressure Required | 1,200 psig |
