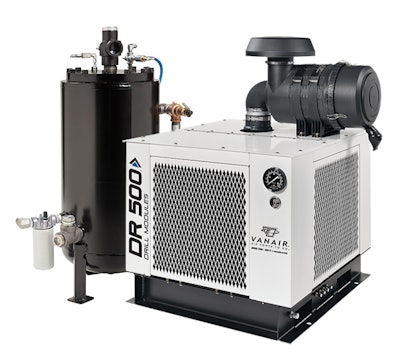

Vanair DR 500 and DR 500HF drill modules deliver power and performance on the jobsite. Designed for water-well, oil and gas, geothermal, blasthole drilling and more, the drill modules are available with either an integral shaft drive or hydraulic drive cooling system.
The DR 500 features a Sullair rotary screw air end and comes with a remote separator tank for flexible mounting and maintenance. During use, the machine offers 500 cfm and up to 200 psi. Accessible instruments include temperature and pressure gauges, as well as an oil level sight glass. Dual two-stage air filters with dust evacuators promotes clean air.
These drill modules are protected by a galvanneal sheet metal enclosure with a powder coated finish for durability in rugged conditions. Integral forklift pockets facilitate transportation around the jobsite. Mounting provisions are also available at the bottom of the frame for permanent installations.
DR500 and DR500HF Specifications
| DR500 | DR500HF | |
| Rated Capacity | 500 cfm (13.5 m3/min) | 500 cfm (14.2 m3/min) |
| Pressure | 200 psi (13.8 bar) | 200 psi (13.8 bar) |
| RPM Input | 2,000 rpm | 2,100 rpm |
| Input BHP Required | 173 (129 kW) | 174 (130 kW) |
| Tank Discharge | 2 in. NPT | 2 in. NPT |
| Compressor Module Weight | 1,365 lbs. | 1,661 lbs. |
| Separator Tank Weight | 335 lbs. | 335 lbs. |
