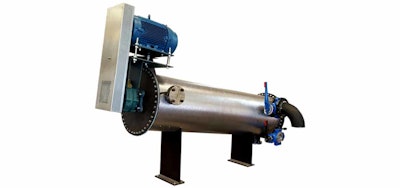

D&H Horizontal Mixing Chamber

The D&H Horizontal Mixing Chamber is an innovative solution to mixing asphalt, rubber, polymer, or any dry powder. It effectively inline blends both small batches to continuous large-scale production.

•  Proven to handle heavily-modified asphalt blending production rates from 10TPH up to 60TPH+ of continuous use
•  85 gal., single-chamber, heat-jacketed chamber
•  Two mixing stages featuring a combination of flighting, breaker bars, and mixing paddles
•  200 rpm single-speed electric motor and gearbox
•  Heat-traced with 2-in. high-density insulation
•  Backflow preventative device with overflow and dual-redundant high-level safety switches
•  2-in. liquid inlet, 8-in. x 8-in. dry feed inlet, 6-in. outlet, 4-in. drain, and 6-in. sump to catch foreign metals
