The 4-tonne 304 and 5-tonne 305 CR Next Generation mini hydraulic excavators deliver more power to the pumps, higher bucket breakout forces and deeper standard digging depths to increase performance by up to 20% over their E2 series counterparts. Their longer grease intervals and extended filter service life, combined with common components throughout the line and flat, easy-to-replace side panels, deliver up to 10% lower owner and operating costs.

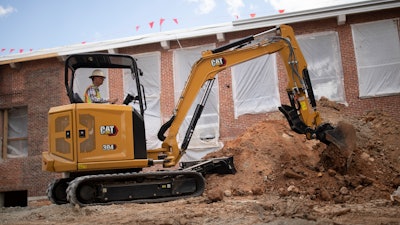

The 304 features a narrow 66.9-in. track width for more versatility and access to confined spaces. Its reduced radius allows for greater stability, both 360° and when traveling with loads, while its extra counterweight option enables an even higher level of stability. The unit has a 126.4-in. standard dig depth or 138.2-in. dig depth with long stick. Power is provided by a 45-hp Cat C1.1 Turbo diesel engine.
Equipped with a 45-hp C1.7 Turbo Tier 4 Final/Stage V diesel engine, the 305 CR delivers nearly 9% greater power to increase machine performance. Hydraulic system improvements provide higher breakout forces – 11,061 lbf. bucket, 6,362 lbf. standard stick and 5,665 lbf. long stick – to improve digging efficiency in hard rock applications. At 134.6 in. standard and 144.5 in. with long stick, it also offers 5.6 in. deeper dig depths than the 305 E2. Its compact radius swing reduces overhang when working to the side, while its 78-in. track width and extra counterweight option help to optimize stability and lift performance in confined spaces.- Angle dozer blade option with standard float function moves 45° left or right of center
- Interchangeable counterweight packages
- Stick Steer System simplifies machine control by allowing the operator to switch from conventional lever/foot-pedal steering controls to low-effort joystick operation
- Two travel speed ranges and standard cruise control facilitate moving around the jobsite with minimum operator interaction
- Standard auxiliary system provides the choice of one-way, two-way or continuous flow and comes complete with quick-disconnect lines
- Sealed and pressurized cab enclosure features large glass areas plus skylight, a large display with advanced touchscreen option and optional heating and/or air conditioning
- Daily maintenance checks quickly made from ground level through side doors
- Expanded use of common parts throughout the line plus a damage-resistant exterior construction help to reduce parts inventory investment
