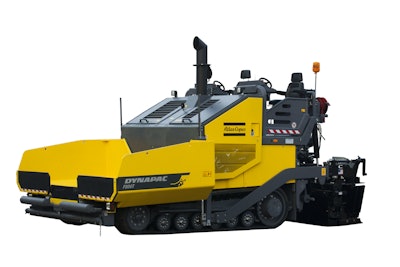

F800T Paver

Patented safe-impact push-rollers, chamfered hoppers, dual bar feed conveyors and a thin auger chain box designed for smooth material flow

Dynapac North America LLC

The F800T paver incorporates new features such as a patented safe-impact push-roller system, chamfered hoppers, dual bar feed conveyors and a thin auger chain box for smooth and continuous flow of material and a quality mat.

Working width of 8 to 19 ft.
Paves 12 in. thick
13.5-ton material hopper with chamfered corners to discourage asphalt from sticking
EZIV08-15 front-mounted electrical screed powered by tractor-mounted 34 kV hydraulically-driven generator
Load-sensing hydraulic system
Safe-impact push-roller ensures shock from bumping the truck is not transmitted to the screed
Hydraulically operated aprons prevent spillage at the front and provide easy dumping of residual asphalt back into the hopper
Independently controlled, dual-bar feed conveyor system with large, 17-in.-diameter auger flights
Center chain box is just 6 in. wide to eliminate centerline segregation
Integrated feed control system uses four ultrasonic sensors for auger and conveyor speed control
6-cylinder, 173-hp Cummins QSB 6.7 Tier 4 Final engine
Cross-flow cooling system with hydraulically driven, temperature-dependent variable speed fan
High-performance frictional undercarriage system and three oversized wheel sets with four wheels per set
Oscillating bogie wheels for operating on uneven surfaces without affecting mat quality
Heavy-duty torque hub with two-speed hydraulic motor for ample torque while paving
Dual sing-out operator consoles with toggle switches and controls as well as electronic displays
Travel speeds up to 8.5 mph
