Heatec Asphalt Fume Condensers

Fume Condenser 2 594ad6db4f689
Heatecinc 10073244

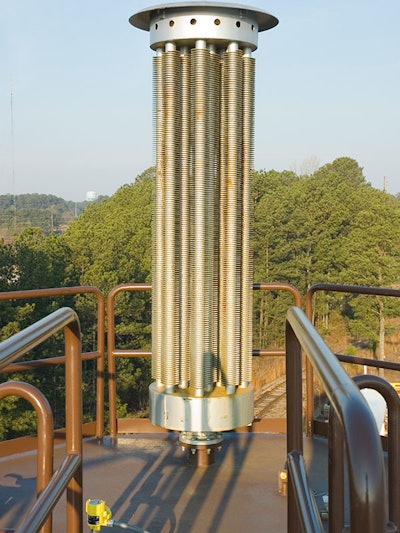

Fume condensers are used in vents of asphalt tanks to condense gas vapors (known as blue smoke) present in liquid asphalt. Condensing the vapors turns them into a liquid that drains back into the tank which greatly minimizes the release of pollutants into the atmosphere.

  • The condensers have a number of tubes with external fins, tubes are cooled by ambient air circulating through the fins and gases exiting the tank are cooled as they flow through the tubes
  • The cooling causes vapors to condense and drain back into the tank
  • Two models are available: one is rated at 200 gpm and the other is rated at 300 gpm. The ratings relate to the tank fill rate, which is equal to the gpm output of the unloading pump
