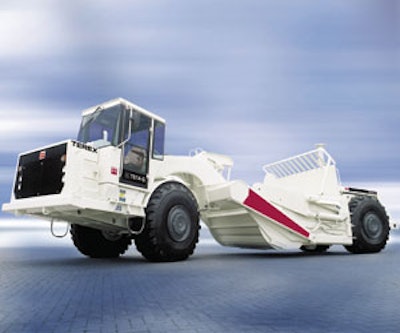

Terex TS14G Scraper
The TS14G has a 20-cu.-yd. heaped capacity and a 14-cu.-yd. struck capacity.
48,000-lb. payload
352-gross-hp engine
Seven-speed electronically controlled transmission with sequential "bump" shift for smooth, low-effort changes
Power-down apron for positive closing and precision ejection
Cushioned bowl suspension
ROPS/FOPS panoramic cab
John Deere Articulated Dump Trucks
The 250D, 300D, 350D and 400D articulated dump trucks offer design improvements that deliver a higher horsepower to weight ratio.
350D and 400D feature a turbocharged, intercooled Mercedes Benz 11.95-liter V6 engine
250D and 300D feature a turbocharged, intercooled John Deere 6081H in-line six-cylinder engine with exhaust brake
Sound-insulated cab with fully adjustable sprung air suspension seat
Reynolds 20E12.5 Scraper
The 20-cu.-yd.-capacity (heaped) 20E12.5 "ejector" pull-type scraper is suited for use with 375- to 500-hp tractors.
Provides a 12.5-ft. cut
Utilizes the SDS synchronized ejector system
Hydraulic manifold with integral valves control all scraper functions
Port Industries Scoop-All Scrapers
The Scoop-All line of pull-behind scrapers are available with standard 26-ply aircraft tires or Bigfoot flotation tires.
Hydraulic system includes a manifold control block
Alloy steel components
Solid alloy steel side arms
ICON Industries 721 Pull-type Scraper
The 721 pull-type scraper is available for use with rubber track or tire tractors up to 600 engine hp.
Also available as Dolly Carriage System for steel track tractors up to 400 engine hp
21-cu.-yd. maximum load capacity
Tandem operation capability
Komatsu HM400-1 Articulated Truck
The HM400-1 articulated truck features a maximum gross vehicle weight of 147,435 lbs., allowing up to a 40-ton payload at its top-rated speed of 36.5 mph.
9-ft. 9-in. loading height
70° dump angle
29.2-cu.-yd. bed capacity
Two-stage body lift cylinder
Powered by a 430-flywheel-hp Komatsu SAA6D140E-3 engine
Caterpillar 735 Articulated Truck
The 735 articulated truck features an electronically controlled engine and purpose-built transmission.
Rated at a 35-ton payload
365-hp Cat 3406E diesel engine
New hitch design, rear-mounted cooling system integrated with new styling and a new operator station and center-mounted cab
Cross-axle differential lock and inter-axle differential lock systems
Case 335 and 340 Articulated Trucks
Case has expanded its 300 Series articulated trucks with the introduction of the 335 with 380 hp and a 35-ton capacity, and the 340 with 426 hp and a 40-ton capacity.
Integrated differential mounted to the transmission for increased tractive effort and reduced noise and vibration
Dump cylinders housed inside the frame
Remote start and warm-up circuit to enhance component life
Automated lubrication to all grease points
Cab controller monitors all fluid levels and temperatures
Ashland I-110XL and I-130XL scrapers
The 11.3-cu.-yd. I-110XL and 13.3-cu.-yd. I-130XL pull-type front dolly wheel hydraulic ejection earthmovers from Ashland Industries are designed for contractors using MFWD tractors or medium-sized dozers.
No specialized tractor drawbars are required
Front dolly wheels provide land following ability independent of power unit
56-in. front gate clearance
Volvo Articulated Haulers
The Volvo articulated hauler line includes 4x4 and 6x6 wheel configurations with payload capacities ranging from 26.5 to 41 tons.
Three-point front suspension
Volvo Engine Brake on A35D and A40D
Six-wheel disc brakes
Designed for easy serviceability
Caterpillar 620G Tractor Scrapers
The single-engine 621G, 623G with elevating scraper and tandem-engine 627G are now equipped with a Cat C15 tractor engine with ACERT technology.
Deliver 330 hp in lower gears and 365 hp in higher gears
Heaped capacities of 22 or 23 cu. yds. with rated loads from 52,800 to 55,115 lbs.
Caterpillar Next Generation Modular Radiator reduces clogging in severe applications
John Deere Scrapers
The 1512E Fixed-Blade Ejector and 1512C Carry-All scraper are designed for precision land leveling, construction of ponds, levees and terraces and site preparation.
Holds 15.5 cu. yds. of fill
Fully compatible with John Deere 8020 and 9020 Series tractors
Work in single or tandem operations
Hoelscher Scrapers
Hoelscher’s scraper line offers models with load capacities from .73 to 1.3 cu. yds.
Frost bit-style or 6-in. double bevel cutting edges
Maximum depths from 1.25 to 4 in.
Available for use with 35- to 50-hp tractors
Category 1 three-point hitch required
Weights from 820 to 1,360 lbs.
Overall widths from 64.25 to 78 in.
RB series available with 24-in. roller
Terex TA30
The TA30 high-powered, heavy-duty articulated truck delivers effective performance with low maintenance requirements.
30.9-ton maximum payload
22.9-cu.-yd. heaped capacity
350-gross-hp engine
49,430-lb. net vehicle weight with a gross vehicle weight of 111,160 lbs.
