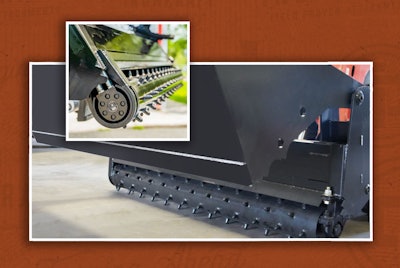

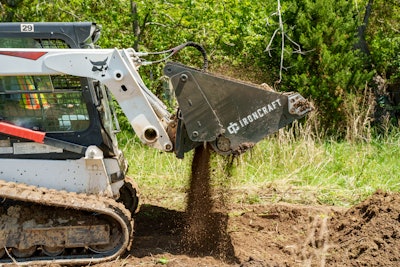

The IronCraft Multi-Purpose Power Rake is an innovative landscape tool that combines a 4-in-1 bucket along with a power rake. With this solution, operators no longer have to change attachments to finish preparing the soil bed. The rake can be used for back dragging, digging and grappling.
A flow rate of 15 gpm to 25 gpm is required during application. Rugged and durable construction includes dual 2-1/2 x 8-in. cylinders, 1-1/4-in. pivot pins, carbide roller tips and a 7-1/2-in. diameter drum (10-1/4-in. tip-to-tip diameter), with a direct drive motor and side cutters as standard. Universal wiring harness available as 7-pin, 8-pin or 14-pin.
IronCraft
This attachment is available in various widths and sizes for installation on large machines to mini skid steers. Customers can choose from the following sizes: 66 in., 72 in., 78 in. and 84 in. A selection of universal wiring harnesses is also available for compatibility with connections.
The Multi-Purpose Power Rake comes stock with a smooth edge, with the option for a Bolt on Edge or welded teeth. Users who opt for Bolt on Edge teeth for more aggressive digging can raise the grapple and use the back side of the bucket as a smooth edge bucket for an all-in-one solution.
