LC 330US Lattice Boom Crawler Crane

The Terex LC 330 lattice boom crawler crane is the largest crawler crane in this product range

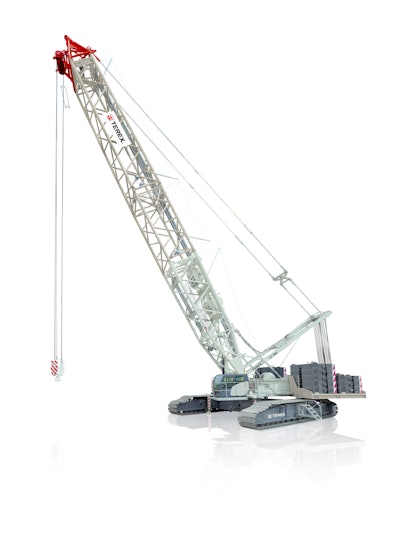

LC 300 cutout 58135145597c1
Terex 10835350

The LC 330US lattice boom crawler crane has a 330-ton maximum lifting capacity and 1,810 mt maximum load moment.

  • Can be configured with up to 275 ft. of main boom or up to 196 ft. of main boom with a 236-ft.  luffing jib for a total maximum system length of 432 ft.
  • Counterweight tray design includes two stacks on each side to reduce counterweight stack height, lower center of gravity and improve counterweight assembly efficiency
  • Standard assembly remote control increases rigging ease
  • Main boom can be rigged “free in the air” with up to 177 ft. of main boom without an assist crane
  • Slide-in system for the main boom sections more efficiently utilizes truck payload to reduce transportation costs and time
  • Wide cabin can comfortably fit a second operator and includes two operating screens displaying engine, winches and crane settings and the IC-1 Load Moment Indicator
