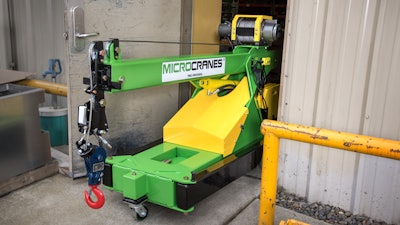

Microcranes' M1 Global Model Microcrane is ISO Certified and fits through 36-in. doorways, narrow aisles and inside elevates. The M1 expands to boom up to a 22-ft. tip height. The multi-purpose crane has several configurations for lifting materials.
- Four piece boom
- Safety features include upper limit switch (anti-two-block), 1.5 load safety factor, 4:1 rated hook with safety latch, rear and front brakes, dual stop points on four piece boom, and more
- Hydraulic boom with hand controls
- Optional wireless remote-control solution
- DC power winch powered by 24-volt deep cycle battery with on-board ch
- Rated at 2,000 l b.
- Hook height of 20 ft. 3 in.
- 30 in. wide
- Weighs 1,800 lb.
- 300 lb. of removable counterweights
- 30 fpm line speed
- Can be made in stainless steel
