320 Mini Skid Steer

1,740-lb. skid steer has a 625-lb. working capacity and moves 8 gpm of auxiliary hydraulic fluid at 3,000 psi

300 Series Bucket Flat 11533868
Boxerequipment 10072490

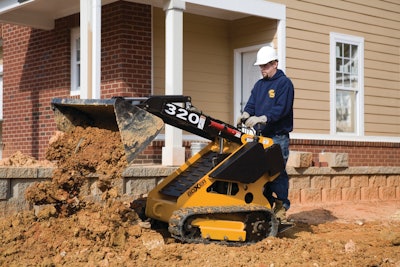

The small but powerful Boxer 320 can handle "big machine" tasks while providing ease of access as a result of its smaller footprint. Boxer's 320 skid steer is only 34.5 in. wide, but the 1,740-lb. loader has an operating capacity (at 50% of tipping load) of 625 lb. And its auxiliary hydraulic circuit moves 8 gpm of fluid at 3,000 psi, putting a very capable machine in a package small enough to maneuver through a standard gate.

  • 20.5-hp Kohler gasoline engine
  • 1,250-lb. tip capacity
  • 438-lb. capacity (at 35% tip load)
  • Dedicated oil cooler manages hydraulic heat
  • 32-in. wheelbase
  • 3.4-mph max ground speed
  • Skid steer-style controls
  • 5-in. ground clearance
  • 92-in. overall operating height
  • 7-in. track width

Boxer 320 Mini Skid Steer Specifications
