Caterpillar 415F2 Industrial Loader Tractor

Configuration combines the basic design of the 415F2 backhoe-loader with purpose-built components designed for industrial loader applications

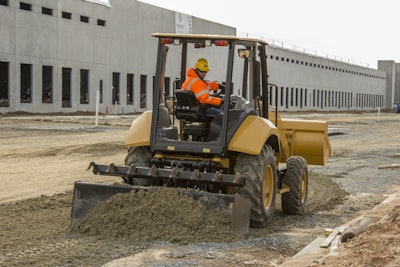

Cat 415F2 IL BHL in working application C10438945 56f969545b7c0
Caterpill 10210679

The 14,150-lb. 415F2 Industrial Loader Tractor combines the basic design of the Cat 415F2 backhoe-loader — including most of the frame, engine, transmission and axles — with purpose-built components designed specifically for industrial-loader applications, such as new pilot controls, three-point hitch and an available box blade scraper with reversible wear plate developed for the skip-loader market.

  • 72-net-hp (peak) Cat C3.4B Tier 4 Final engine does not require diesel exhaust fluid
  • Standard-shift, four-speed transmission with quick-reversing, power-shuttle feature
  • Standard four-wheel-drive system (mechanical front drive) can be used in two-wheel drive with four-wheel braking
  • Single-tilt or dual-tilt rear hitch with shortened hitch arms for optimum grading performance and a non-metallic wedge system to control hitch sway
  • Load-sensing implement hydraulic system with a variable-displacement piston pump produces a maximum flow of 35 gpm at a relief pressure of 3,336 psi
  • Standard three-function loader valve uses reliable mechanical controls
  • Five-function valve for the available box blade scraper uses low-effort, pilot-operated controls, plus the rear valve provides a float function
  • Differential lock can be activated with a floor-mounted button or button on the loader-control lever
  • Available in canopy or cab configurations and in 255-, 530-, and 1,015-lb. front counterweight configurations (optional 198-lb. rear counterweight)
  • Available with either cellular- or satellite-based Product Link telematics system, passcode-enabled security keypad, rear hand throttle, ride control system and more

[VIDEO] Cat Returns to Industrial Loader Market with 415F2 Industrial Loader Configuration
