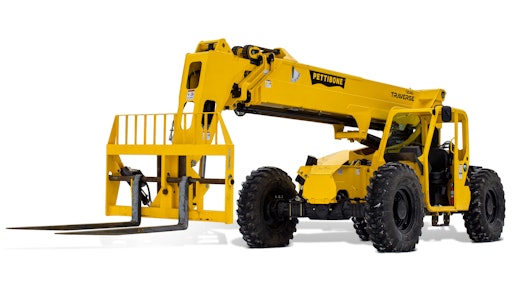

Pettibone Traverse T1246X Telehandler

Pettibone Traverse T1246 X

The Traverse T1246X telehandler features an extendable, traversing boom that moves loads by traveling horizontally.

  • Up to 70 in. of horizontal boom transfer allows users to land loads at the specified lift height and without having to coordinate multiple boom functions
  • 12,000-lb. load capacity rating with 35-ft. 10-in. forward reach and a maximum lift height of 46 ft. 6 in.
  • Formed boom plates offer greater boom strength with less weight
  • Cylinder cushioning dampens end of strokes, both extending and retracting, to prevent hard stops and minimize wear and load spillage
  • 117-hp Cummins QSF3.8 Tier 4 Final diesel engine with side pod mounting
  • Full-time four-wheel drive with limited-slip front axle differential and Dana 223 Series high steer axles provide optimal tractive effort

Extendo 1246X Telehandler
