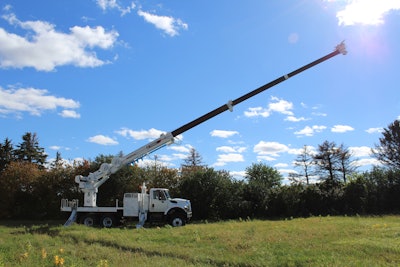

The General 80 digger derrick offers increased capacity and ease of access to key maintenance points and features commonality in controls and parts and servicing requirements.
- Boasts a 79.9-ft. sheave height, 26,600-lb. lift capacity at 10-ft. radius (fully retracted), 1,840-lb. lift capacity at 0° (fully extended) and a 36.4-ft. digging reach
- Designed with fewer hoses and a smaller collector block for improved maintenance and accessibility
- Utilizes the same hydraulic controls and same full-pressure, open-centered hydraulic system as other models in the product line
- Boom extension rollers provide optimal support area around the boom
- Digger hanger shaft keeps unstowed auger centered below the boom for even loading
- Hydraulic tilt pole guide interlocks to protect the tilt pole guide and boom from accidental damage, and its dual hydraulic cylinder trapezoidal design stabilizes the boom during digging and rotational operation
- Standard features includes a load moment limiter, 100° of boom travel (+80° to -20°), dual lift cylinders, continuous unrestricted rotation and a custom zoned load chart
- Available with insulated, retractable, fiberglass 4th section that allows crews to set poles and perform line work
- Various hydraulic diggers and augers available
