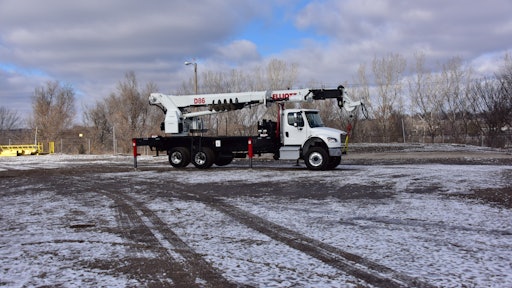

Elliott Equipment Company's D86, a new ANSI 10.31 digger derrick, is specifically designed for transmission and heavy-duty construction projects. Mounted on a tandem axle chassis, the D86 Digger Derrick boasts an 86-ft. sheave height, 20,000 ft.-lb. of torque, and a 41-ft. digging radius.
- Elliott’s high boom pin point geometry for maximum power out of the hole
- Variable displacement piston pump
- Ergonomic seated control console
- Three-section proportional steel boom
- Auger spin speeds of 35 rpm (low) and 80 rpm (high)
- Digging depth of up to 16 ft.
- Front-entry seated pedestal control station
- Oil/Oil controls for smooth operation
- Simplified Hydraulic Load Limiter (HLL)
- 12,000-lb. single line pull main winch with synthetic rope and 50,000-lb. maximum lift capacity at a 10-ft. radius
- Radio anti-2-block system
- Optional heavy-duty tilting pole claw attachment and pole guide designed for gripping large poles
- Optional radio remote control boom and digger operation
- Optional out and down ‘EZ-CRIB’ high-penetration two-stage vertical outriggers with full or mid-span operation
