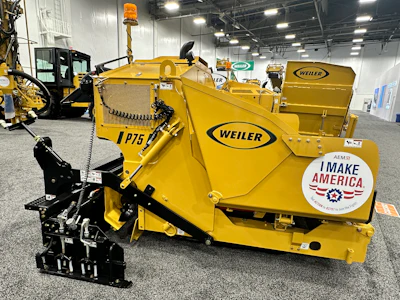

The P75 is Weiler’s newest gravity-fed paver, designed for contractors who want to efficiently knock out multiple driveways and similar commercial jobs. It offers a rubber track option and a walking floor in the front, adapted from Weiler’s larger material transfer vehicles, which allows asphalt to be continuously moved to the rear without stopping to dump the hopper. This walking floor gives some of the benefits of a conveyor system—smoother, more continuous material flow—while improving on lessons learned from the earlier P65 model.
Specification:
Weight 12,600 lb 5715 kg
Length 9’ 9” 2.97 m
Width 98” 2.48 m
Height 70” 1.78 m
Truck Clearance 20.75” 557 mm
Auger Diameter 9” 229 mm
Screed Weight 2,100 lb 952 kg
Main Plate Width 13” 330 mm
Extension Plate Width 7” 178 mm
Screed Heat Electric - 4 elements
Vibration 1 x 2500 vpm
Max Auger Speed 125 rpm
Engine Cat® C2.2 Tier 4F/ST V
Paving Speed 180 fpm 55 mpm
Transport Speed 300 fpm 91 mpm
Fuel Capacity 25 gal 94 L
Hydraulic Capacity 22 gal 83 L
Spray Down Capacity 7 gal 26 L
