XL Specialized Trailers XL 80 Slider

XL Specialized 80 Slide Axle 562962c9cbb6c

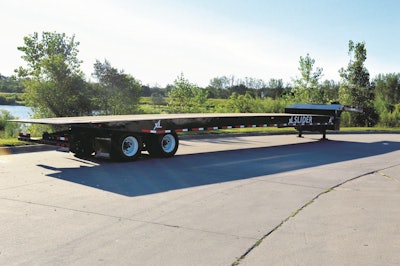

The XL 80 Slider (Slide Axle) is a two-axle trailer rated at 80,000 lbs. overall and 50,000 lbs. in 10 ft. concentrated. Its sliding axle assembly allows the unit to tilt for the loading and unloading of heavy and inoperable equipment.

  • Choice of 48-ft. length with a 17° dump angle, 51-ft. length with a 16° dump angle or 53-ft. length with a 15° dump angle
  • 50- and 60-in. axle spacing options
  • GAR-MAX filament wound composite rollers slide smoothly without the need for grease
  • Suitable for equipment requiring a low load angle of 6.5°
  • Includes a heavy-duty 20,000-lb. hydraulic winch with manual kick-out, 100 ft. of 9/16-in. cable and a two-function wireless remote
  • Four-beam design comprised of 4-in. junior I-beams and 3-in. I-beams on 8-in. centers for durability
  • Standard chain drops down the center deck and side beams provide extra tie-down areas
  • Energy chain protects air and electrical lines from damage
  • Two toolboxes in the upper deck provide storage space
  • Mid-turn lights, clearance lights and two taillights rubber mounted with “plug-and-play” capability
  • Options include dock levelers, a 28-hp Honda self-contained power unit, hydraulic park stands, wired remote for backup or an upgraded six-, seven- or ten-function wireless remote and aluminum wheels
