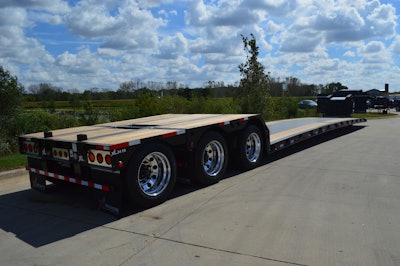

The 48-ft.-long XL 80 Mini-Deck Hydraulic Detachable Gooseneck (HDG) lowboy is available with a capacity rating of 80,000 lbs. overall and 80,000 lbs. in 16 ft. concentrated.
- Three-beam design uses a center box beam for a lighter yet stronger main deck
- 11-ft.-long full-width platform with 28 ft. in the well for maximum loading area, a low-profile hydraulic neck and a loaded deck height of 12 in. with 4 in. of ground clearance
- Steel over the center deck and apitong decking in the outer bays provide added traction when loading
- 4-in. junior I-beams on 18-in. centers join the box beam and side rails
- 13-hp Honda engine allows the neck to be easily raised and lowered into one of the five ride height positions
- 36-in. flip neck extension for using a four-axle truck
- Comprised of T-1 flange and 80K web
- Features 4-in. tapered front ramps, manual ride height control, LED lighting with an amber strobe, a liquid-filled air gauge and an Air-Weigh digital scale
- Prepped for a Flip Axle to add additional axles when needed to meet various regulations
