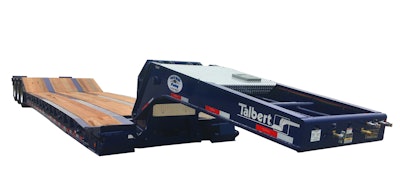

The 55CC-RP heavy-haul trailer has a concentrated load rating of 55 tons in 12.5 ft. of deck for hauling a variety of equipment, including rollers, pavers, excavators and dozers.
- Extra steel in main and side beams of deck and gooseneck and rear axles allows 55-ton capacity to be achieved in a 12.5-ft. rigid-load base rating
- 53-ft. length with a 24-ft. clear deck length in the well
- 20-in. crossmember spacing along with auxiliary crossmembers on the lower deck
- 22-in.-high deck with 6-in. loaded road clearance
- 41-in.-long tapered ramps can be adjusted to accommodate various widths of equipment
- 57-in. rear slope has a 20.2 ° load angle suited for loading asphalt and soil rollers
- Three close-coupled axles can accept optional pin-on axles for loads requiring four axles in a row
- Full-width rear-bridge fenders equipped with 1.5-in. heavy-duty Apitong
- Manufactured with heavy-duty T-1, 100,000-psi minimum yield steel
- Dual kingpin settings allow drivers to operate in states with 43-ft. kingpin laws without the need for a permit when traveling empty
- Optional open-center sections for excavator booms
