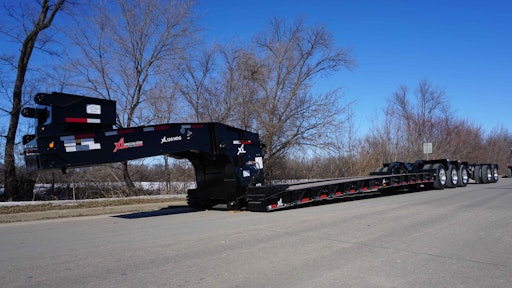

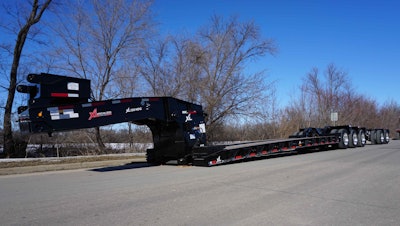

XL Specialized Trailers XL 120 HDG Trailer

26-ft.-long main deck offers a loaded deck height of only 18 in. with a ground clearance of 6 in. for hauling tall and heavy equipment

120 4

The 53-ft.-long XL 120 hydraulic detachable gooseneck (HDG) 2+3 trailer boasts a concentrated capacity rating of 120,000 lbs. in 10 ft. and a 26-ft.-long main deck with a loaded deck height of 18 in. and ground clearance of 6 in.

  • Features several different configuration options to haul equipment including setting up with a 3+2 or 4+1
  • Power booster can be removed to run three, four or five axles in a row
  • Modular deck connection adds deck sections or swaps out deck designs and allows for shimming when needed
  • 13-ft. low-profile hydraulic gooseneck with a swing clearance of 107 in. and 36-in. flip neck extension offering a five-position ride height
  • Main deck includes seven bent d-rings along with 13 chain drops per side
  • Rear deck measures 14 ft. long with a 41-in. loaded deck height
  • Power booster uses hydraulic pressure accompanied by a nitrogen accumulator to transfer weight from the trailer, while allowing the booster to be flexible for uneven terrain
