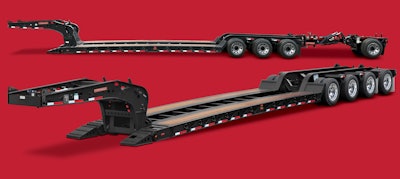

Fontaine Magnitude 60LCC Trailer

Fontaine 60 Lcc Pr Red

The Magnitude 60LCC hauls 60-ton loads in 13 ft. with four axles close coupled and is designed for customers operating in regions where spread axle configurations are not required to maximize trailer loads.

  • Can handle 60 tons without adding a flip box or a spreader, enabling a lighter trailer setup and improved maneuverability
  • Designed to accept a 23-in. flip box and EQ1 spreader with a 4th axle if a spread axle configuration is required, providing a 55-ton load capacity in 16 ft. and a 125-in. swing radius
  • Fabricated with 100,000-lb. minimum yield steel flanges
  • Boasts a 26-ft. clear deck length and a loaded deck height of 18 in. with 6 in. of ground clearance
  • Hydraulic removable gooseneck can be connected and disconnected in a matter of seconds and can connect/disconnect on uneven ground
  • Variety of accessories available
