Fontaine Workhorse Trailers for Hauling Heavy Construction Equipment

Fontaine Heavy-Haul, a manufacturer of large trailers for construction projects, offers Workhorse trailers for moving excavators and work equipment. The Workhorse series includes the following models: Workhorse 50, Workhorse 51, Workhorse 55LCC, Workhorse 55PVR and WorkhorsePVR PRO. These trailers all have black paint finishes and feature three- or four-axle wheel configurations.

Workhorse 50 Features

• 50-ton capacity in 12-ft.; 52-ton frame capacity in 16-ft. (configuration, GAWR and tire ratings determine legal payloads)
• 5-position front ride-height adjustment
• 20-in. loaded deck height with 6-in. ground clearance
• 102-in. swing radius for maneuverability
• 24-ft. clear deck length
• Boom trough with V-pan in bogie helps you get under bridges
• 5-position mechanical ride height control system and dump valve
• LED lights, strobes and D-rings are all standard

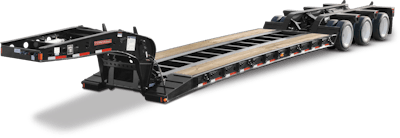

Workhorse 51 Features

• 51-ton capacity in 12-ft. (GAWR and GVWR determine legal payloads)
• 5-position front ride-height adjustment
• 22-in. loaded deck height with 6-in ground clearance
• 102-in swing radius for maneuverability
• 25-ft. clear deck length (optional 26-ft. deck available)
• Boom trough with V-pan in bogie helps you get under bridges
• 5-position mechanical ride height control system and dump valve
• LED lights, strobes and D-rings are all standard

Workhorse 55LCC Features

• 55-ton capacity (configuration, GAWR and tire ratings determine legal payloads)
• 7-position gooseneck ride height control for up and down clearance at front of deck
• 18-in. loaded deck height with 6-in. ground clearance
• 108-in. swing radius for maneuverability with alternate kingpin location at 89-in. for local compliance
• 26-ft. clear deck length handles heavy loads
• Boom trough with V-pan in bogie helps you get under bridges
• 5-position mechanical ride height control system and dump valve
• LED lights, strobes and D-rings are all standard

Workhorse 55PVR Features

• 55-ton capacity in 16-ft. with 3 or 4 axles close coupled 50-ton capacity in 12-ft. with 3 or 4 axles close coupled (GAWR and GVWR determine legal payloads)
• 102-in. swing radius for maneuverability
• 5-position gooseneck ride-height adjustment
• Low 9° front approach angle
• Low 16° deck-to-bogie transition ramps
• Removable center bogie section with low boom well to haul excavators
• 24-ft. clear deck length
• Air ride suspension with automatic, manual raise and lower control
• 5-position mechanical ride height and dump valve
• LED lights, strobes and D-rings are all standard

Workhorse 55PVR Pro Features

• 55-ton capacity in 16-ft. with 3 or 4 axles close coupled; 50-ton capacity in 12-ft. with 3 or 4 axles close coupled
• Low 9° front approach angle
• 7-position hydraulic detachable gooseneck with 108-in. swing radius and 82-in. alternate kingpin
• Tapered deck with 24-ft. clear deck length
• Low 17° deck-to-bogie transition ramps
• Removable center bogie section with boom well to haul excavators
• 7-position air ride tridem bogie
• 275 tires and flip axle ready
