Felling Trailers has added Low Pro Heavy Duty (LP HD) models to its deck-over tag line. The LP HD has been designed and engineered for transporting heavy (near 50-60K load capacities) wideset loads, like excavators, dozers and other construction equipment.
"As equipment continues to get bigger and wider, how weight is distributed can make or break a trailer. Our LP HD series tag has been designed and engineered to accommodate equipment that has an 8-ft. to 8.5-ft. wide track gauge (center to center of tracks), which will concentrate the machines weight directly over the side rails, typically 10-in. or more overall width machines (some examples: Deere 200 and 210, CAT 320 and 323 as well as Komatsu PC210). This has been accomplished along with incorporating the standard features an operator wants and needs," said Felling's sales manager Nathan Uphus.

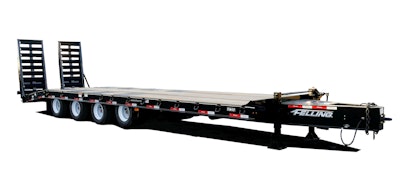

The LP HD series currently consists of two models: the FT-50-3 LP HD triple-axle 25-ton and the FT-60-4 LP HD quad-axle 30-ton (4-axle legality varies by state and providence). The available deck lengths for the triple axle are 24-ft., 26-ft., 28-ft. and 30-ft. The available deck lengths for the quad-axle are 28-ft., 30-ft. and 32-ft.
The Low Pro Heavy Duty (LP HD) series is constructed with a 10-in. structural channel full-length side rail (flanges out), Jr. I-Beam crossmembers 12-in. on center pierced through the heavy-duty, engineered and fabricated 16-in. tall mainframe beams and is standard with 1-3/8-in. apitong decking. The LP HD design was driven by the needs of wide-set heavy loads. With the flange-out side rail construction, it allows for optional outriggers to provide additional support and load distribution.
Apitong decking is durable wood for construction equipment applications. The LP HDs are standard with a 6-ft. long double incline beavertail providing 12-degree and 6-degree load angles, respectively. The double incline feature eliminates the sharp break-over point, which helps load and unload tracked equipment safely. The 6-ft. double incline beavertail is constructed with 5-in. x 3-in. self-cleaning angles. The 6-ft. x 20-in. ramps, like the beavertail, are built with a 5-in. x 3-in. self-cleaning angle, spring-assist construction or optional air ramp configurations depending on the equipment or operator's needs.
Low Pro Heavy Duty Specifications (Triple and Quad Axle)
- 16-in. tall, fabricated Grade 80 main frame beams (stepped down in trunnion area)
- 0.5-in. thick main frame beam flange material
- 6-ft. high tensile Jr I-beams Grade 80, spaced 12-in. on center
- 10-in. channel side rail (full length) rails turned out
- Standard 1 3/8-in. thick apitong decking (white oak optional)
- Standard 1-in. bent D-Rings – 16 on Triple, 20 on quad axle
- 235/75R17.5 J Tires and 25K heavy-duty 3-leaf spring suspension
- 6-ft. double incline beavertail with 6-ft. x 20-in. spring assist ramps (self-cleaning or wood inlaid)
- Optional 38-in. wide x 7-ft. long air powered ramps (self-cleaning or wood inlaid)
