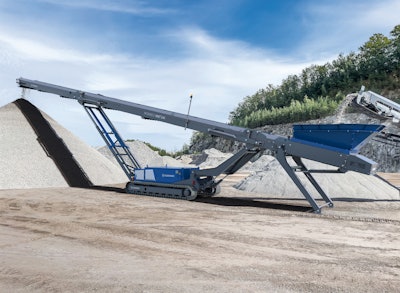

Kleemann MOBIBELT mobile stackers are used for logistics processes on worksites, helping move different types of material for processing, site clearing and more. The machines flexibly extend the action radius of crushing and screening plants, making large stockpiles and logistics possible.
Nowadays modern crushing and screening plants regulate material streams within the plant to a large extent automatically. Machine operators still have an influence on the final product and daily output. They control the input with their excavators and wheel loaders or the loading of stone or recycling material. Users also play a role with regard to output. They co-ordinate the final products by means of building up stockpiles, intermediate storage areas and loading. With MOBIBELT MBT 20i and MBT 24i stackers from Kleemann, logistics can now be organized and adapted to various situations.
Feed Capacities
Both stackers are equipped with a large 1.6-yd³ feed hopper made of resistant KRS (Kleemann Resistant Steel), which permits the feeding of material with an edge length of up to 8 in. An optional hopper extension up to 3.3 yd³ is provided with an additional impact bar that prevents the direct impact of the feed material on the conveyor belt, helping reduce wear. The hydraulically adjustable feed and discharge height facilitates setup; and the stackers can be used behind screening and crushing plants with different discharge heights.
Operation
The MOBIBELT MBT 20i and MBT 24i have a SPECTIVE operating concept that makes intuitive operation of the machines possible. During a typical workday, the operator receives support with a central operating position, local operation and the option of troubleshooting help via SPECTIVE CONNECT.
