BOMAG BF 200 Cart Path Paver

At just 13,228 lb and 51 in. transport width, this compact and nimble paver can be transported to jobsites on a trailer.

Bomag Bf 200 Paver
Bomag Logo 180x66

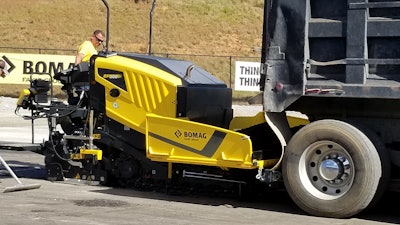

The BOMAG BF 200 cart path and small construction site paver weighs just 13,228 lb and has a transport width of 51 in. allowing this compact and nimble paver to be transported to jobsites on a trailer.

  • At home paving paths, on the golf course and road rehabilitation projects, the paver’s narrow 44-in . track width fits in the cut of a 4-ft.cold planer to boost efficiency of mill-and-fill applications
  • The hydraulically extendible electric screed offers base paving widths ranging from 3.6 ft. to 6.6 ft.
  • Manual screed extensions feature Quick Coupling technology with a locking wedge-and-socket design to quickly extend paving widths to 11.2 ft.
  • Available reduction skids allow contractors to pave as narrow as 1.3-ft. wide, significantly increasing the paver’s flexibility
  • Patented BOMAG MAGMALIFE technology heats the screed up to paving temperatures in approximately 20 minutes
  • Powered by a fuel-efficient 74-hp diesel engine, the new BF 200 paver requires no diesel particulate filter (DPF) or diesel exhaust fluid (DEF) aftertreatment to meet stringent Tier 4 Final emissions regulations
  • Two-level operator platform design provides the best view to both the hopper and paver sides without compromise
  • Equipped with an automatic steering radius system, the paver easily matches and holds cart path radius, while conveniently allowing the operator to focus on other paving functions.
  • While compact size, the machine’s large 5-ton hopper capacity provides extended paving intervals between loads
  • Optional hydraulically unfolding hopper wings deliver convenient loading with an end loader
  • Alternatively, for mill-and-fill paving, the hopper’s 118-in.width easily accommodates truck loading, while the paver offers the traction and power required to push the truck
  • BOMAG ECOMODE active engine and hydraulics management system reduces fuel consumption by up to 20% standard mode operation
