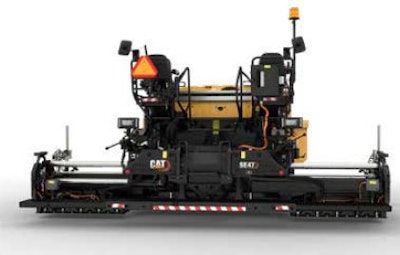

The Cat SE47 V screed with rear-mounted extenders provides stability, easy set-up and a versatile paving range.
- Ideal for parking lots, urban and rural roads, subdivision streets and highways
- Paving range utilizing the SE47 V screed is 8-ft to 15-ft, 6-in with a maximum width of 20-ft
- Walkway clearance height of 5-ft enables close starting capability next to curbs and other obstacles
- Screed operating consoles are equipped with mix height adjustment for the augers, providing the ability to modify material flow. When equipped with Cat® Grade Control, conveyor ratio adjustment or conveyor material height can be performed through the display
- Screed plate depths of 12-ft on both the main and extenders providing stability and good mat textures
- Electric heating system with zone monitoring helps ensure even heat distribution and smooth asphalt textures while also allowing heating to continue in the event of a temperature sensor failure
- Screed operating consoles are equipped with mix height adjustment for the augers, providing the ability to modify material flow
- Power controls for extender slope and height enables operators to quickly manage mat profiles
