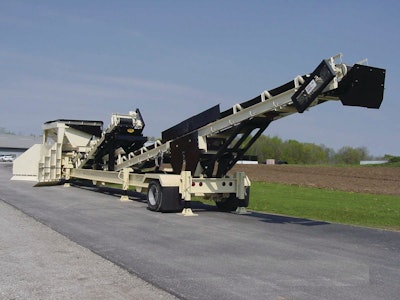

ADM Portable and Stationary Recycle Systems

Recyclesystems 10082305
Asphaltdrummixersinc 10072033

Asphalt Drum Mixers offers four models of portable and stationary recycle systems that allow plants to use milled material in hot mix asphalt (HMA).

  • 15-ton capacity
  • Continuously welded at the seams
  • Bins contain angle irons and midsection stiffeners for reinforcement
  • Steeply sloped sidewalls help prevent material from plugging or bridging
  • Tapered discharge opening leads to the direct-drive belt feeder, which includes a 5-hp motor, multi-ply belt, self-cleaning tail pulley and adjustable skirt boards
  • For RAP transfer, includes a heavy-duty weigh conveyor that is 2-feet wide and between 45- and 65-feet long
  • Based on plant conditions, up to 50% of HMA can contain recycled pavement
  • Portable units feature heavy-duty I-beam frame on a gooseneck trailer with a fifth-wheel kingpin hitch, single axle and air brakes
  • Options include a lump breaker, single- and double-deck scalping screen, air cannons, grizzlies, bin extensions, adjustable legs with sand shoes and a skid with bolt-on support legs
