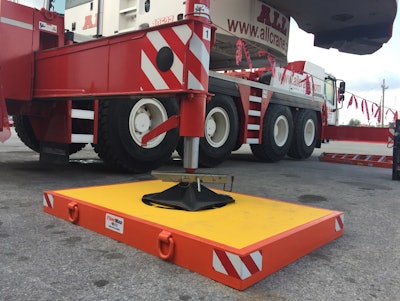

DICA Heavy Duty FiberMax Crane Pads

Heavy Duty models have been added to the FiberMax crane pad product line, filling a gap between the 175,000- and 325,000-lb. rated capacity models.

• 250,000-lb. maximum rated capacity
• Crush ratings of 600 psi
• Span from the FM6x4x6-HD providing a 24-sq.-ft. area to the FM8x6x6-HD offering a 48-sq. ft. area
• 6.75-in. thickness with up to a 70% weight savings over steel pads
• All FiberMax pads now feature standard Hi-Viz orange, C-channel frames made of lightweight steel with upsized 2" x 2" bars
