Rebar Accessories March 2011

Make jobsite rebar installations easier with these tools and accessories.

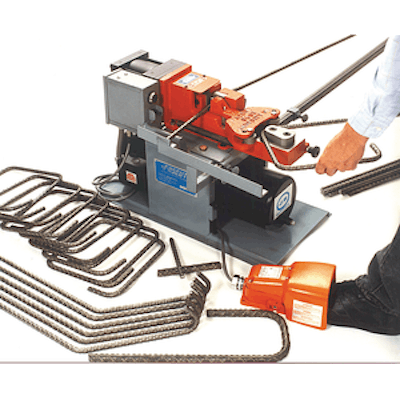

FS-600 Portable Rebar Cutter/Bender
FS-600 Portable Rebar Cutter/Bender

FS-600 Portable Rebar Cutter/Bender


  • Will both cut and bend up to 3/4-in. (#6) grade 60 rebar
  • 180-lb. machine
  • Plugs into standard 110 volts
  • Quickly cut rebar to length or accurately fabricate stirrups, hooks and 3-D bends at the jobsite or shop


Fascut Industries Inc.


Rebar Cutter Blades


Rebar Blades offers replacement cutting blades for all makes and models of rebar cutters. Blades are in stock and ready to ship the same day they are ordered. And if blades for your model are not currently available they can be made and then stocked for you.


Rebar Blades LLC

Rebar Cutter S32


  • Production Capacity: Maximum Diameter is 36 mm in normal steel
  • Cut single bars up to 36 mm
  • Up to four 12 mm bars can be cut at a time
  • Cut speed of 40 cuts per minute
  • Fully closed body made of special steel
  • Motor:3-hp, 2.2kW, 2880 rpm, 3-phase, 50 Hz, 4.8 amp, 380 to 440 V. Model- Avadhut – Frame 90 Motor Rating – Continuous Insulation Class – F Class Enclosure Type – TEFC Duty Rating – S1


Swastik Entech Pvt. Ltd.

DF 16 Rebar Tier


The DF 16 rebar tier is a simple, mechanical unit that allows an operator to tie up to 1,000 knots per hour.

  • Weighs less than 5 lbs. and allows operator to work in a comfortable upright position
  • One-hand operation with no special training or experience required
  • Loops at each end of the tie wire automatically interlock and are twisted when the device is withdrawn
  • Creates a tighter knot and each tie is secured without cutting


Wacker Neuson Corporation

RB397 Rebar Tying Tool


  • Can tie rebar up to #5 x #6
  • 2,000 ties per charge with a 14.4v lithium-ion battery
  • Brushless motor
  • Trigger lock
  • Torque adjustment dial
  • Automatic shut-off when not in use
  • Reversible belt hook
  • Kit includes carrying case, charger and battery pack


Max USA Corp

MetalliScanner MT 6


  • Capable of finding metal up to 6 in. deep in concrete
  • Differentiates between ferrous and non-ferrous metal targets
  • Indicates target depth in inches and centimeters
  • Position accuracy to within ± 1/2 in.


Zircon Corporation

Aztec Straddle Chair


  • Fits rebar #3 to #11
  • Covers height ranges from 3 to 7 3/4 in.
  • Staple down feature and two sizes per chair
  • Product applications include side form spacer, tilt-up, precast and D.O.T. projects


Dayton Superior

Rebar Safety Cap


  • Protect employees and equipment from exposed rebar, pipe and anchor bolts
  • High visibility orange color
  • Made from colored polypropylene LLPE Blend
  • Fit #3-#8 rebar


Polylok, Inc.

Rebar Benders and Cutters


  • Powered by 10,000 psi hydraulic pumps
  • Operate with a single hand
  • Bend or straighten rebar up to 135°
  • All models rotate 360°
  • Bending and cutting capacities of #6, 3/4" or #8, 1" 60-grade rebar


EZE Bend, Inc.

Twister Rotary Tying Tool


The Twister Rotary Tying Tool is designed to cut, twist and tie rebar in place. The tool cuts excess wire on closing. No batteries or electricity are required. With the Twister Rotary Tying Tool the operator controls the tightness of the tie.


Gensco Equipment Company

Quick Rebar Clamp Valet


  • Forged steel pieces that when used with a piece of standard #4 or #6 rebar create a strong, temporary clamp to reduce the need for lumber in concrete forming
  • Replace wood stakes used for batter boards, footings and edge board in concrete construction
  • Design is based off of a traditional Roman clamp that relies on pressure created by angling metal pieces in a binding action, rather than nails and lumber or other connecting methods, to form a clamp


M.B. Tools, Inc.

Straight Shank Rebar Cutters


Bosch's straight shank rebar cutters, for use with hammer drills and rotary drills, are designed to work in rotation mode and feature a unique flute geometry that employs a steep spiral design to quickly remove debris. A relief hole is incorporated into the cutting surface to dissipate heat and facilitate slug removal. Bot the body design and shank are tapered to reduce weight for smoother drilling and to reduce vibration. Bits are available in 12-in. lengths with drilling diameters from 3/8 to 1.5 in. The line also includes 18-in. lengths for 1/2-, 5/8- and 3/4-in. diameters as well as 6- and 12-in. extensions.


Bosch Power Tools & Accessories



  • Cut through soft steel and non-ferrous up to Rockwell C15 (7/16 in.)
  • Cut through medium hard metals up to Rockwell C31 (3/8 in.)
  • Tool head can be switched to Huskie's RBH-4 to bend rebar


Huskie Industrial Tools



  • Positive reinforcing steel positioning device used to control concrete coverage and steel location in concrete walls designed with two mats of reinforcing
  • Manufactured to project specifications regarding minimum coverage, steel size, orientation of bars and wall thickness


Plasmafab LLC

Concretor's Nippers


  • Use to twist and cut wire in one operation
  • Cutting edges with additional hardness, approximately 61 HRC
  • High-grade special tool steel is forged and oil-hardened
  • With or without plastic-coated handles


Knipex Tools LP

The Cutting Edge Saw


  • Cuts rebar, all-thread rod, coil rod, EMT conduit, pipe and more
  • Cuts the material flush with the surface, while a flush-cutting blade guard reduces blade exposure
  • Three-position, removable side handle and a rotating trigger handle provide the operator with multiple cutting positions
  • 4.375-in. tungsten carbide tipped blade with a .860-in. depth of cut
  • Electric and battery-powered options available


Benner-Nawman, Inc.

Column Slider


  • Smoothly guides rebar columns or cages into confined spaces
  • Three sizes available providing 1.5-, 3-, or 3.5-in. spacing/coverage
  • All sizes 15.5 in. end-to-end length
  • Bevelled ends prevent jamming of column or cage during installation
  • Easily fastens onto rebar with wire ties
  • Plastic polycarbonate construction withstands high shock loads
  • Product applications include foundation piling, columns and bridge work



Better Air Mfg.
