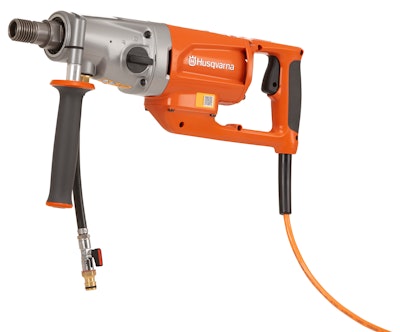

The Husqvarna DM 200 Handheld Core Drill

Husqvarna Construction Products North America Inc.

The Husqvarna DM 200 is a tough and versatile D-handle drill motor optimized for handheld drilling of holes from 1 - 3 in (25 - 80mm). Delivering top-class drilling performance in both wet and dry applications. The uncomplicated and sturdy design, all-around usability makes it an ideal part of any craftsman’s toolkit as well as for rental purposes. The Husqvarna DM 200's casing is made of sturdy impact-proof polyamide plastic with ball valve coupling for wet drilling, vacuum coupling for dry drilling, detachable front handle, wrenches, and user manual.

Features

Wet & Dry Drilling—This all-around machine features a smart 2-in-1 solution for both water supply and vacuum extraction, enabled by a special sealing system design.
Ready for Connectivity—Equipped with built-in connectivity for communication with the Husqvarna Fleet Services™ system in your smartphone or laptop, enabling you to monitor the actual runtime and utilization rate, availability and location, service planning and fleet inventory.
Extremely Durable—Built for years of rough handling and hard work in tough conditions, with oil-bath gear lubrication, aluminium gearbox casing and impact-proof polyamide plastic motor casing to save weight.
Intelligent Overload Protection—Both the operator and drill motor are protected by an overload clutch, while intelligent engine electronics automatically alerts the operator if the overload threshold is exceeded.
Two-Speed Gear—You can easily adapt the spindle speed and torque to any drilling diameter between 1 - 3 in (25 - 80 mm) with the two-speed gear selector.\
Easy to Level—The two integrated levels make it easy to enable exact horizontal and vertical working positioning.

Specifications

Power: 2.3 hp (1.7 kW)
Output Power on spindle shaft, W: 1,200
Motor: 1-phase, electric
Weight: 11.5 lbs. (5.2 kg)
Length: 19 in. (488 mm)
Spindle thread: 1 1/4 in. (outer) 7 UNC, A-Rod | G 1/2 in. (inner)
Adapter for the U.S., to outer thread 5/8 - 11 UNC included in the package
100-120V (50-60Hz)
Spindle speed idle, unloaded: 1,375 rpm (gear 1), 2,800 rpm (gear 2)
Spindle speed idle, loaded: 835 rpm (gear 1), 1,700 rpm (gear 2)
Drill diameter in concrete: 1 to 2 in. (25 to 50 mm, gear 1), 1.5 to 3 in. (40 to 80 mm, gear 2)
