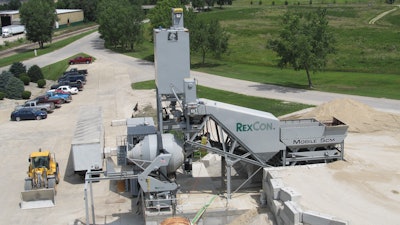

Mobile 5 Portable Concrete Batch Plant

The Mobile 5 Batch Plant is ideal for remote jobsites and can be set up with a front end loader — no crane is required.

• 225 barrel (42 ton/38 metric ton) storage silo with a gravity feed cement surge hopper
• Two 6-in. recirculating screw augers
• Surge hopper capacity provides two loads of cement are ready for batching
• Low-profile aggregate bin with 16 cu. yd. storage capacity
• Standard loading height = 13 ft.; loading width = 10 ft.
• Both cement and aggregate batchers are CPMB rated for 5 cu. yd.
• Also available with a 6 cu. yd. central mix option
