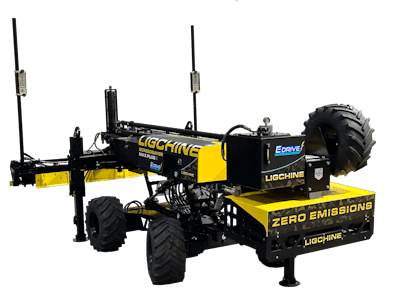

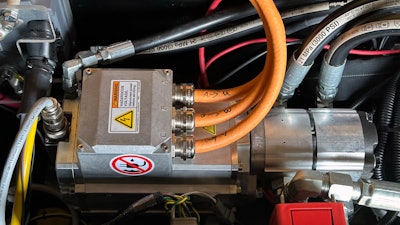

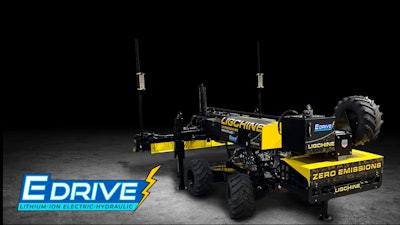

Featuring a 100% lithium-ion electric power system, the SCREEDSAVER MAX PLUS E builds on the success of the SCREEDSAVER MAX PLUS. The MAX PLUS E is equipped with EDRIVE, a 48-volt electrically driven hydraulic power unit. It features a built-in diagnostic touchscreen, SwingBoom pivoting frame, Topcon laser receivers, and Ligchine Gen 2 wireless remote control system.
Concrete contractors can now safely screed indoors and in climate-sensitive environments.
- Screed Coverage: The MAX PLUS E offers 17 ft. (5.18 m) of boom extension with a 10 ft. (3 m) high-performance screed head
- Energy Storage: 48V Lithium Ion
- Electric Motor System: 48V 3-Phase AC Liquid Cooled electric motor
- Drive System: 2-wheel proportional drive with wireless remote control
- SwingBoom Pivoting Frame: 12 degrees of total movement, with up to 5 ft. 3 in. (1.6 m) of side-to-side screed head movement with a pivoting boom member
- Grade/Slope/Dual Slope Control: Topcon LS-B110 laser receivers (included)
- Ease of Transport: The MAX PLUS E can be towed with pickup truck and trailer and pass through 6 ft. door openings
Electric Motor System | 48v Lithium Ion Battery 48V 3-Phase AC Liquid Cooled Electric motor |
Machine Size (retracted) | 6 ft. 3 in. (1.9 m) Wide by 15 ft. 10 in. (4.8 m) long by-5 ft. 7 in. (1.7 m) high (at top of pivot post) |
Machine Weight | 5,000 lbs. (2,177 kg) |
Steering System (hydraulic) | 2 Wheel Steering |
Drive System (hydraulic) | 2 Wheel Proportional Drive |
Parallel to the Pour Driving Capable | Yes - 90-degree Manual Pivoting Undercarriage Drive Frame with SwingBoom |
Machine Operation Control | Ligchine Gen2: Wireless Remote Control - Scanreco |
Coverage Per Screed Pass (no overlap) | 170 sq. ft. (15.79 m2) |
Screed Head | Width 10 ft. (3 m) |
Boom Reach | 17 ft. (5.18 m) |
Transport with Pickup Truck and Trailer | Yes |
Screed Head Options | High Performance, Paver, Pervious, Various Widths |
Grade/Slope/Dual Slope Control (standard) | Topcon LS-B110 Receivers (included) |
Contoured Slope 3D Capable (optional) | Topcon 3D mmGPS Satellite Control or LPS Robotic |
Extras | Tool Box, LED Lighting, Spray System |
