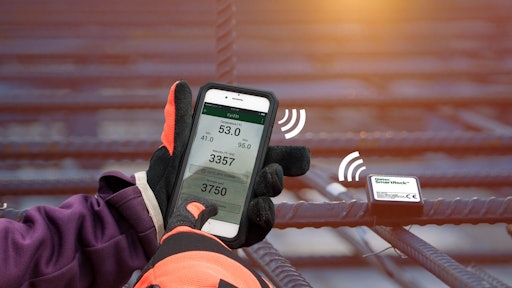

SmartRock is the world's leading wireless concrete temperature and strength sensor, helping construction companies build structures faster, safely, and more efficiently. These user-friendly sensors are easily installed in the concrete formwork (on the rebar) before pouring to monitor in-situ temperature and maturity according to ASTM C1074. The wire-free logger continuously records the measured temperature of any concrete pour in real-time. These results are analyzed automatically onsite (to determine the in-place concrete strength) using the free SmartRock app, (Available for both Android/iOS mobile devices.)
Ideal for applications such as:
- Formwork removal timing
- Post-tensioning
- Optimizing curing conditions
- Saw cutting
- Controlling quality in the field
- Monitoring temperature gradients in mass concrete
- Opening roads to traffic

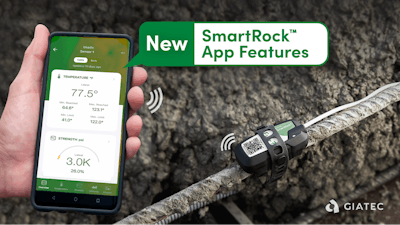

October 2020 Update: Giatec announced a fresh and intuitive user interface design, giving contractors access to a more comprehensive analysis of concrete performance.
All the updates have been designed to reflect SmartRock customers' fast-paced environment on construction jobsites by speeding up and enhancing the ease with which they can collect and analyze important concrete data, a process which oftentimes directly effects project schedules. With these upgrades, SmartRock users can now activate multi-sensor processing options which allow them to automatically connect to every embedded sensor within range and download their data all on one page within the app. This streamlines the process of collecting and analyzing sensor data. Furthermore, the new design of the app includes easy-to-interpret gauges that provide more thorough details and insights into the temperature and curing conditions of placed concrete.
Software includes:
- Real-time data display (e.g. temperature, strength, max-min values, and graphs)
- Maturity calibration database
- Free Android and iOS apps for smartphones and tablets
- Project management tools including live data sharing
- Full PDF reporting and CSV data exporting
- Giatec 360 Cloud Dashboard (user/data management, predictive analytics, and more!)
- Integration with project management applications (e.g. Procore)
Hardware includes:
- Wire-free and wireless technology
- Rugged and waterproof design
- Easy installation and activation by tying the wires together
- Extended temperature sensor cable for mass concrete
- Long battery life
- Cloud Dashboard
- Patents pending
