Caterpillar SMART Backhoe Attachment

BH130 SMART Backhoe Attachment is designed for Cat D3 Series skid-steer loaders, compact track loaders and multi terrain loaders.

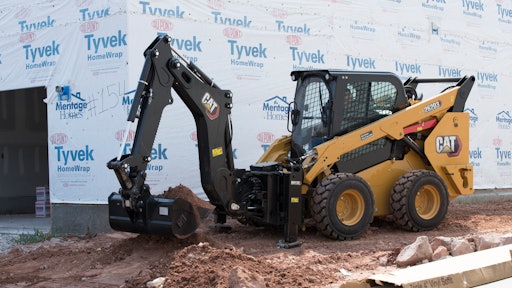

Cat 262 D3 Ssl With Bhl Smart Attachment Wt Nc 0919 145
Caterpill 10210679

The 2,325-lb. BH130 SMART Backhoe Attachment is designed for Cat D3 Series skid-steer loaders, compact track loaders and multi terrain loaders.

  • Maximum digging depth of 9.75 ft. with 13.25-ft. reach at ground level from the swing pivot pin

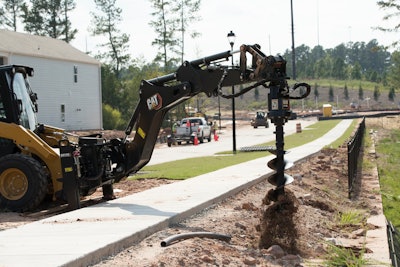

  • Auxiliary hydraulic system allows pairing with hydro-mechanical work tools including hammers, thumbs, augers and vibratory compactors
  • Compatible with the company's 3-ton excavator attachmentsCat Ssl With Bhl Smart Attachment Wt Nc 0919 149 2
  • Hydraulically shifts side to side (total of 33 in.) to allow digging adjacent to buildings and footers
  • Integrated stabilizers offer a 71-in. spread to provide a solid digging platform
  • Integrated electrohydraulic controls operated using the host machine’s joysticks
  • Attachment control mode allows existing joysticks to be used for boom, stick, bucket and swing functions
  • Host machine recognizes attachment when attached and pulling the trigger on the right joystick places the system in the dig mode
