Okada TOP Series Model 100A Hydraulic Breaker

For use on 22,000- to 42,000-lb. excavators and breaks at a rate of 550 to 710 bpm

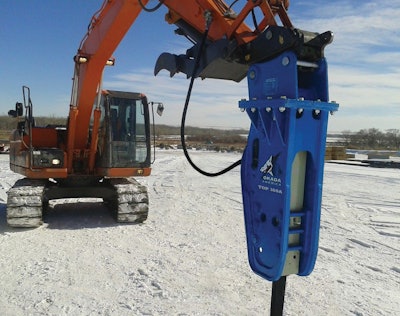

Okada Gsc Top100 A 1 Retouch (2)

The Model 100A is targeted for use on 22,000- to 42,000-lb. excavators and breaks at a rate of 550 to 710 bpm.

  • Requires 29 to 35 gpm at 2,030 to 2,620 psi
  • Suited for demolition of heavily reinforced concrete structures, building foundations, trench rock and oversize boulders
  • Large capacity accumulator reduces pressure spikes to protect the carrier hydraulic system
  • Nitrogen gas cushions the piston on the upstroke (eliminating the need for shock absorbers) and increases the piston downstroke force
  • Central grease port allows the breaker to easily adapt to most auto-lube systems
  • Long stroke design reduces shock loads and vibration which can cause machine stress and operator fatigue
  • Cup seals utilized to secure flow in the oil and gas chambers
Fill out the form below to request more information about Okada TOP Series Model 100A Hydraulic Breaker
