Stanley MB05 Small Mounted Breaker

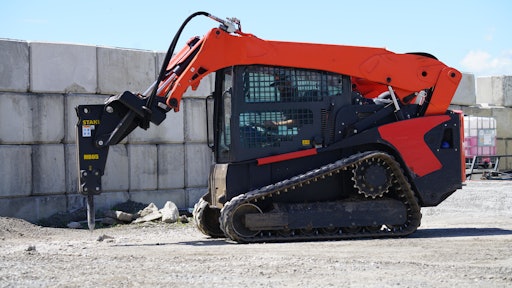

The MB05 breaker can be mounted on skid steers, backhoes and mini excavators

Mb05
Screen Shot 2017 07 20 At 10 22 48 Am

The Stanley MB05 breaker features a skid steer bracket with four positions to allow work on both floors and walls.

  • Only two moving parts
  • All models are ready to pin-on or bolt on a custom bracket for pin grab coupler
  • Added steel reinforcement at lower end of housing to protect housing and power-cell
  • Valve design allows for wider range of pressures and flows
  • Side-plate bolt locking system keeps bolts from loosening
  • Direct acting nitrogen chamber boosts the power of each hammer blow
  • 550-ft.-lb. impact energy
  • 650 to 1,550 bpm
  • 1,500 to 2,000 hydraulic operating pressure
  • Working length: 15 in.
  • Fits on skid steers in the 4,500 to 7,000 carrier size; excavators in the 5,000 to 8,000 size; and backhoes in the 6,000 to 11,000 size
