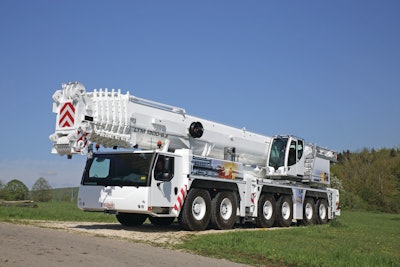

Liebherr's LTM 1300-6.2 six-axle chassis mobile crane replaces the LTM 1250-6.1. The 1300-6.2's telescopic boom offers an additional 19.69 ft. in length over its predecessor.
- 48- to 256-ft. telescopic boom
- 46- to 230-ft. lattice jib
- Double folding jib can be extended by two additional 22.97-ft. sections; can be erected at an angle of 0°, 20° or 40°
- Powered by a single engine with a mechanical shaft
- 8-cylinder Liebherr diesel engine develops 612 bhp at 1,900 rpm and torque of 2,856 Nm at 1,500 rpm
- 12-speed ZF-TC-Tronic gearbox
- Pneumatic disc brakes
- 4 rear axles have active electro-hydraulic steering depending on vehicle speed
- 5 steering programs available at touch of a button
- Liebherr LICCON2 crane control
- Max lifting capacity: 704,000 lbs. at 10-ft. radius
- Travel speed: 50 mph
- Operational weight: 159,000 lbs.
- Total counterweight: 211,600 lbs.
- Driving/steering: 12 x 8 x 12
- CONEXPO-CON/AGG Booth #2155
