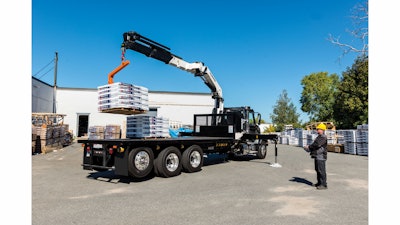

Iowa Mold Tooling Co. Inc.'s 32 tm 32/222 articulating crane features ultra-high tensile steel construction of the hexagonal boom for superior lift-to-weight ratio, high lifting capacity at long reaches and increased payload capabilities.
- Horizontal reach features eight hydraulic extensions
- Dual-power plus link-arm system
- 15-degree overbending
- Continuous rotation
- Standard radio remote control
- Standard RCL (rated capacity limiter) 5300 system to monitor load moment, operation and function
- Internal hose routing system for hose protection
- Multiple stabilizer options
- Flexible stow bracket design secures boom for transportation
- Rated 222,050 ft.-lbs.
- Maximum lifting capacity: 15,058 lbs.
- Radius: 14 ft. 9 in.
- Horizontal reach: 69 ft. 7 in.
Fill out the form below to request more information about 32/222 32 tm Articulating Crane
