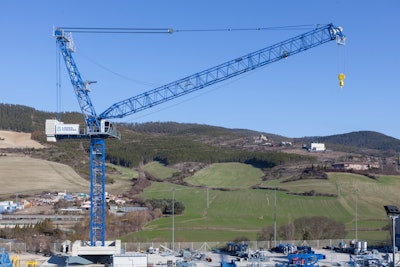

Linden Comansa LCL700 Luffing-jib Crane

The LCL700 luffing-jib crane is the largest in Linden Comansa's luffing-jib tower cranes range and available in two versions with maximum load capacities of 141,090 and 110,230 lb

Linden LCL700 crane 2 58a4686ea71eb

The LCL700 luffing-jib crane is the largest in Linden Comansa's luffing-jib tower cranes range and available in two versions with maximum load capacities of 141,090 and 110,230 lb.

  • Hoist system can be changed from double line to single pull to increase hoist speed
  • 268-hp motor
  • High-capacity Lebus hoist cable drum
  • Pre-assembled luffing reevings
  • Out-of-service jib radius: between 66.9 and 53.5 ft.
  • Counter-jib radius: 31.2 ft.; can be reduced to 28.5 ft.
  • Maximum radius: 213.3 ft.; can be reduced in increments to 98.4 ft.
  • Maximum load at maximum reach: 15,870 and 16,530 lb.
  • Maximum reach: 13.1 ft.
  • Maximum free-standing height: 229 ft.
