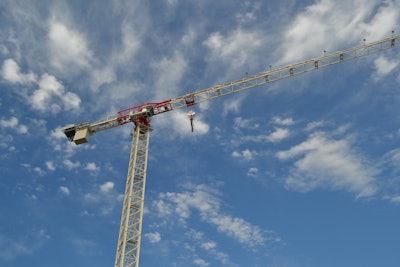

Terex CTT 472-20 Flat Top Tower Crane

The 22-ton Terex CTT 472-20 flat top tower crane is the first tower crane model with the new Terex cabin that puts the operator in a fully adjustable seat with joystick controls and large full-color 7-in. display with anti-glare screen

Terex Ctt 472 20
7d552466

The 22-ton Terex CTT 472-20 flat top tower crane is the first tower crane model with the new Terex cabin that puts the operator in a fully adjustable seat with joystick controls and large full-color 7-in. display with anti-glare screen.

  • New control system with exclusive Terex Power Plus feature that can temporary increase the maximum load moment under controlled conditions
  • Power match allows operator to choose between operating performance or lower consumption
  • 470-ton-meter load moment
  • 11 different jib configurations from 98.4 to 262.5 ft.
  • Can be configured with H20, HD23 and TS212 Terex mast section
  • Tower segments preassembled with aluminum ladders
  • Jib sections preassembled with a life line for quick, safe installation at height
  • Galvanized jib walkways
  • Joystick controls with short stroke length
  • Built-in heating and air conditioning
  • Increases load charts over previous models
  • Optional radio remote control
  • Maximum jib length: 262.5 ft.
  • Maximum load at full length of jib tip: 4.4 tons
