Demag AC 80-4 All Terrain Crane

Tadano introduces the Demag AC 80-4, an all-terrain crane with the ability to travel on the road with a counterweight of 10.3 tons, a Mercedes-Benz engine and transmission, a 60 meter main boom and various other features.

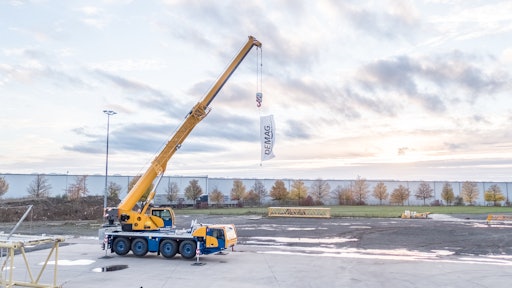

Ac 80 4 Full Res 19
Tadano America Corp.
Tadano 11080557

The 110-ton class Demag AC 80-4 all-terrain crane features a 60-meter main boom with a 6.5‑meter main boom extension that can be offset by 25° and 50°.

  • Quick setup due to the ability to fold and to be carried on the main boom
  • 1.50-meter runner with a capacity of 29.3 tons
  • Can be used for indoor projects
  • Can be lowered up to 3° below its horizontal position
  • Total length of 12.15 meters  the carrier length is 10.60 meters, its height does not exceed 3.85 meters and the front overhang is 1.49 meters
  • Total width of 2.55 meters
  • Maximum counterweight of 19.5 tons
  • Can transport up to 10.3 tons of counterweight while remaining under a 13.2 ton axle load limit and carrying the 6.5-meter swing-away jib
  • Includes a three-sheave hook block on board
  • Mercedes-Benz engine produces a maximum of 340 kW, delivers up to 2,200 Nm of torque and conforms to EU Stage V and Tier 4 Final emissions
  • Mercedes-Benz G230-12 transmission with 12 forward speeds and two reverse speeds
  • All-wheel steering as standard
  • Two or three driven axles
  • Demag IC-1 Plus control system calculates lifting capacity for every boom position as a function of the superstructure’s slewing angle
  • Flex Base system makes it possible to extend the outriggers to any point within their range
  • Expanded graphic display provides operators with additional information on lifting capacity within the working range while accounting for the boom position and slewing radius
  • Automatic counterweight detection function supports crane operators selecting the counterweight that has been set up
  • IC-1 Remote telematics solution makes it possible to remotely read and diagnose all important crane data
  • E-Pac electro-hydraulic system designed to be connected to the crane with an integrated 32-kW electric motor
