Mid-frame R Series Skid Loaders

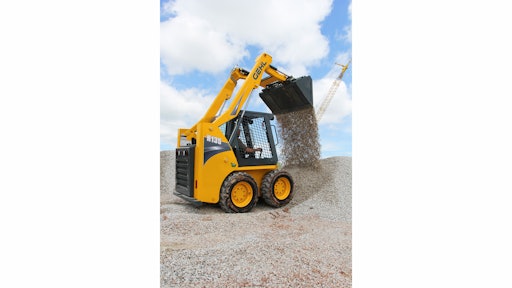

Gehl R135 Skid Steer Dump Bucket 540f223a500d4
B&w Gehl

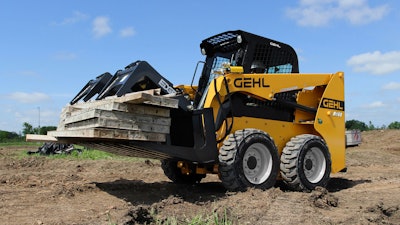

Gehl's mid-frame R Series radial-lift skid loaders include the R150, R135 (which replaces the 4240E) and R165 (which replaces the 4640E Power2) which feature a new operator station with integrated digital display, new load arm design with increased visibility and Yanmar Tier 4 engines.

  • Engines incorporate diesel particulate filter (DPF) technology
  • Standard proportional auxiliary hydraulics
  • Front-lifting restraint bar and armrests with multiple adjustments
  • Mechanical or air-ride suspension seat options
  • Three control options: T-bar, hand/foot and joystick (R165 only)
  • Cab forward design and lowered rear towers for visibility to the bucket edge and rear of machine
  • Optional pressurized cab enclosure
  • Level II FOPS structure
  • Manual Quick-a-Tach or hydraluic Power-a-Tach attachment systems
  • HydraGlide ride control
  • Hydraloc safety system
  • Rated operating capacities range from 1,500 to 1,800 lbs.
  • Lift heights up to 119 in. (on R150 and R165)
  • Max torque ratings from 107.8 to 178 ft.-lbs.
  • Flow rates from 17 to 18.9 gpm
  • Gross power: 46.3 hp (R135, R150); 69.9 hp (R165)
