SR240 and SV280 Tier 4 Final Skid Steers

Tier 4 Final skid steers feature Case’s maintenance-free particulate matter catalyst solution

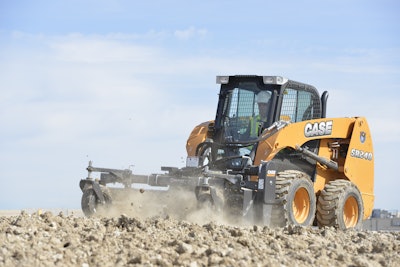

CASE SR240 Skid Steer 1 54d931e54790f
Caseconstructionequipment 10072354

The 74-hp SR240 and SV280 Tier 4 Final skid steers feature Case’s maintenance-free particulate matter catalyst solution. These large-frame models deliver 232 ft.-lbs. of torque, a bucket breakout force of up to 8,680 lbs. and standard (24.2 gpm) and high-flow auxiliary (33.2 gpm) hydraulics for optimal power and attachment versatility. Weighing in at 7,400 lbs., the SR240 offers a rated operating capacity (ROC) of 2,400 lbs., while the 8,090-lb. SV280 offers an ROC of 2,800 lbs.

  • Particulate matter catalyst combines a diesel oxidation catalyst (DOC) and a high-efficiency flow-through filter
  • 360° visibility with a cab-forward design, skylight and ultra-narrow wide side screens
  • Wide fully sealed and pressurized cab with low step and entry threshold that helps improve visibility to the bucket and attachment
  • Standard heavy-duty front and side lighting for working in night and twilight applications
  • EZ-EH (electro-hydraulic) setup menu includes nine adjustable speed and control sensitivity settings that can be adjusted on the fly, enabling the operator to match controls to their preference
  • Operator handles with detents improve controllability and feathering by providing greater responsiveness to the actions/movement of the machine
  • PowerStance wheelbase provides optimal curb clearance and greater stability during lifting and hauling
  • Ride Control and two-speed travel further help improve material retention
  • Easy-tilt cab provides convenient access to the drivetrain compartment
  • 25.5-gal. fuel tank

Video: Case Talks About Advantages of SCR on Skid Steers
