Compact Track Laoders Rental July 2007

Featured compact track loaders include John Deere, Takeuchi, Hyundai and more.

1185894166350 10298077

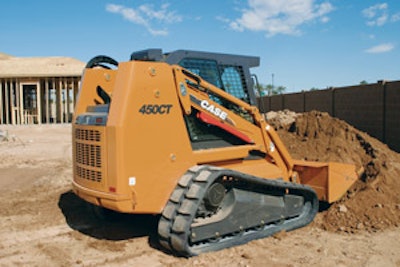

Case Compact Track Loaders

  • Includes the 420CT, 440CT, 445CT and 450CT
  • Dozer-style undercarriages
  • 56- to 82-net-hp Case engines
  • 2,500 to 3,857 lbs. of lift capacity
  • 445CT offers vertical lift


John Deere Compact Track Loaders

  • 62-hp CT 322 and 76-hp CT 332
  • 8,305- and 10,825-lb. operating weights
  • 6,400- and 9,200-lb. tipping loads
  • Up to 4,300- (CT 322) and 8,210-lb. (CT 332) breakout forces
  • Reinforced booms, thicker upper links, larger cooling capacity and larger fuel tanks
  • True vertical lift boom
  • Steel-reinforced rubber track
  • Optional two-speed transmission, push-button Quick-Tach, self-leveling bucket, high-flow hydraulics and HVAC system


Takeuchi TL120

  • 52-hp engine
  • 6,000-lb. operating weight
  • 59.5-in. operating width; 126.8-in. operating length
  • Tipping load of 3,549 lbs.
  • Bucket breakout force in the bucket cylinders of 4,821 lbs.; 5,042 lbs. in the lift arm cylinders
  • Rubber tracks


Gehl CTL70 Track Loader

  • Dedicated undercarriage and high-strength, 18-in.-wide rubber tracks
  • 2,976-lb. rated operating load at 50 percent of tipping capacity
  • 82-hp Isuzu turbocharged diesel engine
  • Bucket breakout force of up to7,401 lbs.
  • Provides nearly 20 gpm
  • Features include two-speed drive, pilot-operated joystick controls and hydraulic self-leveling


Hyundai HSL T Series

  • Includes tracked unit rated at 3,200 lbs.
  • Maximum dump heights range from 46 to 110.75 in.
  • Maximum travel speeds from 4.4 to 12.3 mph
  • Easy access to all controls, hydraulics and hydrostatic system components via the cab without tools
  • Kubota, Eaton, Danfoss and Sundstrand components
  • Thick steel construction


Bobcat K-Series Track Loaders

  • T180 to T300 feature an additional roller on the undercarriage for better ride quality and improved roller and overall track life
  • 1,800- to 3,000-lb. rated capacities
  • Temperature-controlled, variable-speed SmartFAN cooling system
  • Additional 2 in. of lift height on large-frame vertical lift path units
  • K-Force hydraulic system on medium-frame models provides an 8-percent increase in hydraulic breakout forces, hydraulic lift to full height and attachment torque
