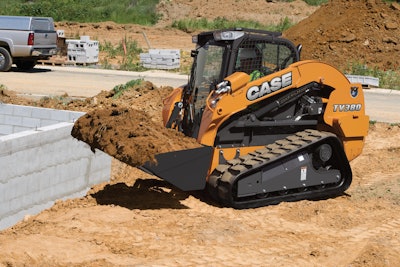

The TR340 and TV380 are the first Tier 4 Final compact track loaders outfitted with selective catalytic reduction (SCR) technology. The new TR340 rounds out the Case lineup of large-frame models, providing customers with both a radial-lift (TR340) and vertical-lift (TV380) design to choose from in the larger footprint.
- SCR solution from Fiat Powertrain Technologies requires no diesel particulate filter (DPF)
- Radial-lift TR340 weighs 10,000 lbs. with a rated operating capacity (ROC) of 3,400 lbs. and a bucket breakout force of 8,700 lbs.
- Vertical-lift TV380 weighs 10,550 lbs., provides 7,510 lbs. of bucket breakout force and an ROC of 3,800 lbs.
- Both models rated at 90 gross hp, 282 ft.-lbs. of torque and hydraulic flow rates of 24.2 (standard) and 37.6 gpm (high flow)
- 25.5-gal. fuel tank extends run times
- Feature a heavy-duty 950 CCA battery, more robust rear door for added protection, standard front and side lighting, block heater and easy access remote jump-start
- EZ-EH (electro-hydraulic) setup menu with nine adjustable speed and control sensitivity settings
- Operator handles with detents improve controllability and feathering
- Dozer-style undercarriage with a rigid track frame featuring fewer moving parts
- Nearly 3-ft.-wide enclosed, fully sealed cab pressurized against noise and dust
