VT-70 is ASV's First Mid-Frame Vertical-Lift Compact Track Loader

ASV transformed its undercarriage from its previous closed design to an open-rail and drive-sprocket design for longer sprocket and bogie life, easier and faster undercarriage cleaning

ASV VT70 5876a1f72fe59
ASV logo 58239a0e8c9e8

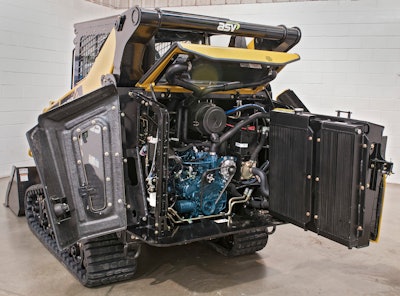

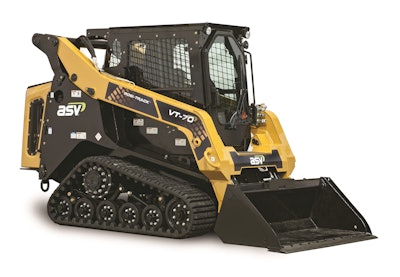

ASV introduces the company’s first mid-frame, vertical-lift compact track loader, the Posi-Track VT-70. The machine features a vertical lift loader linkage for applications requiring extended reach and level loads, such as loading pallets and handling hay bales. The VT-70, with rated operating capacity of 2,328 lb., excels at lift, carry and load tasks as well as heavy digging in industries such as agriculture, construction and excavation. ASV’s patented Posi-Track rubber track suspension is a single-level suspension made using two independent torsion axles per undercarriage. ASV transformed its undercarriage from its previous closed design to an open-rail and drive-sprocket design for longer sprocket and bogie life, easier and faster undercarriage cleaning.ASV VT70 Service 5876a1fd10059

  • Ride control dampens loader-arm movement to limit material loss and improve operator comfort
  • Multiple wheel contact points, central drive lug and outside guide lug minimize track derailment and perform well on steep slopes
  • 15-in.-wide tracks result in a ground pressure of only 4.6 psi
  • 13 in. of ground clearance
  • 65-hp Kubota 2.4-L turbocharged diesel complies with EPA Tier 4 Final using a diesel oxidation catalyst requiring no regeneration, sensors or diesel exhaust fluid
  • Optional 28.4 gpm at 3,300 psi high-flow auxiliary hydraulics
  • Rated operating capacity: 2,328 lb.; tipping load: 6,650 lb.
  • lift height: 10.5 ft.
  • Standard joystick controls, self-leveling system allows attachments to stay at a set position while lifting
  • Optional 16.5-in. track for a lower ground pressure of 4.2 psi, increased traction and flotation
