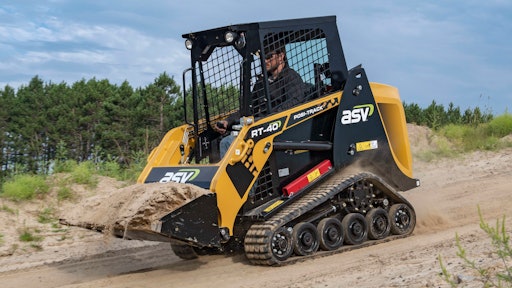

ASV RT-40 Posi-Track Loader

Measures just 48.3 in. wide yet features a 931-lb. rated operating capacity, a tipping load of 2,660 lbs. and a lift height of 8.4 ft.

Asv Rt 40 Descend
ASV logo 58239a0e8c9e8

The 4,175-lb. RT-40 Posi-Track small-frame compact track loader measures just 48.3 in. wide yet features a 931-lb. rated operating capacity (ROC), a tipping load of 2,660 lbs. and a lift height of 8.4 ft.

  • 37.5-hp Kubota turbocharged, 1.8L, Tier 4 Final engine produces 84.5 ft.-lbs. of torque and requires no regeneration, exhaust sensors or diesel exhaust fluid
  • Posi-Track system provides optimal traction and track life and a ground pressure of 3.5 psi
  • Standard variable auxiliary hydraulic flow with a 13.3-gpm pump capacity and 3,000-psi system pressure
  • Offers a 10.8-in. ground clearance and speeds up to 7.1 mph
  • Purpose-built chassis provides a 44° departure angle, decreasing the risk of getting stuck when starting to climb a steep hill
  • Direct-drive pumps and large line sizes and hydraulic coolers transfer more flow and pressure directly to the attachment and prevent power loss
  • High-efficiency cooling system
  • Designed for ease of service with features such as a large rear-tilting hood, fuel tank in the engine compartment and heavy-duty frame, drive table and axles
  • Cab designed for optimal comfort and visibility
  • Optional drive hub full-metal face seal package increases the ROC to 1,008 lbs.
